CYTEC MOTOR SPINDLES

CySpeed


CySpeed Motor spindles for the whole spectrum... of machine tasks:



  • From rough milling up to high-speed finishing
  • Milling, turning, grinding, drilling...
  • Asynchronous/synchronous motors with a power range from 8 up to 60 kW
  • Torque up to 1.150 Nm maximum
  • Modular system for individual solutions
  • Industrial designs for customized results
  • Different tool interfaces:HSK, BT, CAPTO, CAT, DIN
  • Temperature monitoring
  • Asynchronous/synchronous motors: can be combined with all common control systems
  • Encoder

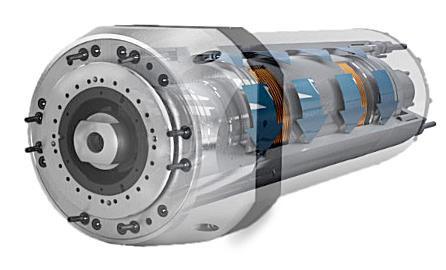

High speed machining motor spindles
  • Rotary union: Transfer of clamp/release hydraulics, internal coolant supply, minimal quantities of lubricant (MQL)
  • Motor- and spindle cooling - Internal and external tool cooling, MQL
  • Air blast/face control
  • Pre-loaded hybrid bearings
  • Hydromechanical clamping system: highest rigidity with high speed

MILLING S8

S8 - Series suited to low power from 10 kW to 20 kW
Cytec milling spindle CS-15-135-A
Milling spindle
CS-15-135-A
  • Power 15kW
  • Torque 24Nm
  • Speed 24000 rev/min

PDF File

Cytec milling spindle CS-20-135
Milling spindle
CS-20-135
  • Power 20kW
  • Torque 33Nm
  • Speed 24000 rev/min

PDF File

Cytec milling spindle CS-18-135-S
Milling spindle
CS-18-135-S
  • Power 18kW
  • Torque 56Nm
  • Speed 18000 rev/min

PDF File

MILLING P12

P12 - (Orthogonal) electrospindle series from 15kW to 34kW
Cytec Milling spindle CS-15-180-A
Milling spindle
CS-15-180-A
  • Power 15kW
  • Torque 48Nm
  • Speed 24000 rev/min

PDF File

Cytec Milling spindle CS-21-200
Milling spindle
CS-21-200
  • Power 21kW
  • Torque 100Nm
  • Speed 15000 rev/min

PDF File

MILLING M21

M21 - Usual and intermediate series Electrospindles from 21kW to 60kW
Cytec Milling spindle CS-21-180-A
Milling spindle
CS-21-180-A
  • Power 21kW
  • Torque 100Nm
  • Speed 18000 rev/min

PDF File

Cytec Milling spindle CS-27-180-S
Milling spindle
CS-27-180-S
  • Power 34kW
  • Torque 72Nm
  • Speed 24000 rev/min

PDF File

Cytec Milling spindle CS-34-180
Milling spindle
CS-34-180
  • Power 34kW
  • Torque 72Nm
  • Speed 24000 rev/min

PDF File

Cytec Milling spindle CS-34-180-S
Milling spindle
CS-34-180-S
  • Power 34kW
  • Torque 170Nm
  • Speed 12000 rev/min

PDF File

Cytec Milling spindle CS-42-180-S
Milling spindle
CS-42-180-S
  • Power 48kW
  • Torque 220Nm
  • Speed 5000 rev/min

PDF File

Cytec Milling spindle CS-40-180
Milling spindle
CS-40-180
  • Power 40kW
  • Torque 39Nm
  • Speed 30000 rev/min

PDF File

Cytec Milling spindle CS-60-180-S
Milling spindle
CS-60-180-S
  • Power 60kW
  • Torque 82Nm
  • Speed 24000 rev/min

PDF File

Cytec Milling spindle CST-42-180-S
Milling spindle
CST-42-180-S
  • Power 42kW
  • Torque 201Nm
  • Speed 10000 rev/min

PDF File

Cytec Milling spindle CST-27-180-S
Milling spindle
CST-27-180-S
  • Power 27kW
  • Torque 130Nm
  • Speed 10000 rev/min

PDF File

MILLING M21 DRILLING HEAD

M21 - Intermédiate series from 21kW to 60kW
Cytec Drilling head CSV-21-400
Drilling head
CSV-21-400
  • Power 21kW
  • Torque 200Nm
  • Speed 18000 rev/min

PDF File

Cytec Drilling head CSV-50-400
Drilling head
CSV-50-400
  • Power 50kW
  • Torque 248Nm
  • Speed 15000 rev/min

PDF File




MILLING G30

G30 - Severe Series from 40kW to 77kW
Cytec Milling spindle CS-50-238
Milling spindle
CS-50-238
  • Power 50kW
  • Torque 248Nm
  • Speed 15000 tr/min

PDF File

Cytec Milling spindle CS-60-238-S
Milling spindle
CS-60-238-S
  • Power 60kW
  • Torque 82Nm
  • Speed 22000 tr/min

PDF File

Cytec Milling spindle CS-42-238-S
Milling spindle
CS-42-238-S
  • Power 42kW
  • Torque 400Nm
  • Speed 7000 tr/min

PDF File

Cytec Milling spindle CS-115-260
Milling spindle
CS-115-260
  • Power 115kW
  • Torque 700Nm
  • Speed 1600 tr/min

PDF File

MILLING G30 ELECTROSPINDLE GEAR

G30 - Severe series from 40kW to 77kW
Cytec Milling spindle CSG-50-300-S
Milling spindle
CSG-50-300-S
  • Power 50kW
  • Torque: S1 265Nm(i=1) 795Nm(i=3)
  • Speed 7000 tr/min

PDF File

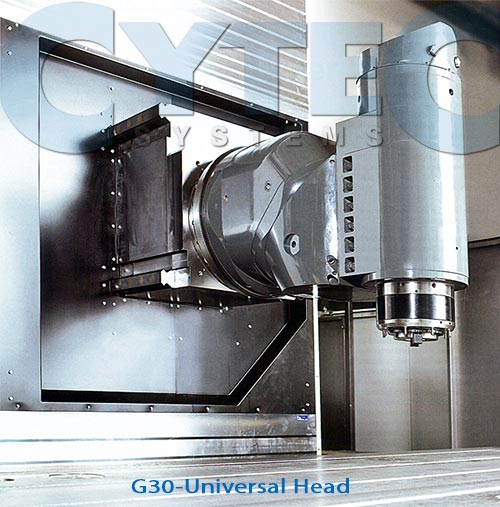

Universal Milling head G30
Cytec Drilling head CS-77-500
Drilling head
CS-77-500
  • Power 77kW
  • Torque 800Nm
  • Speed 3000 tr/min

PDF File

Cytec Electrospindle gear

MILLING K50 MOTOR SPINDLE GEAR

K50
Cytec motor spindle gear K50
K50
    Engine power (S1, S6): 76kW.95kW
  • Nominal Speed: 1800 rev/min
  • Speed (gear 1:3): 600 rev/min
  • Engine max speed: 7000 rev/min
  • Gear max speed: 1200 rev/min
  • Engine Torque (S1,S6) 400 Nm, 5004 Nm
  • Gear Torque:1.3: 1200 Nm, 1500 Nm
  • Engine Type: Synchrone 8 pôles
  • Power/Current name. 400V. 195 A
  • Siemens Pilot Need 66SL33120-1TE32-QAA1
  • Heidenhain UM116DW
  • Self expected 0.4 mH
MILLING K50 MOTOR SPINDLE GEAR Cytec

ELECTROSPINDLE FSW

The spindle suited for welding by friction mixing

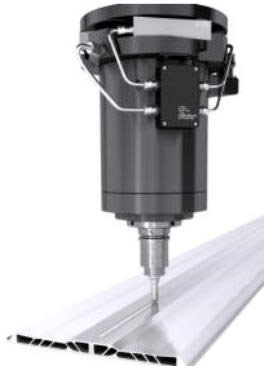

Cytec electrospindle for welding by friction mixing

    Characteristic spindle components
  • HSK-tool interface with positive locking hydro- mechanical tool clamping system
  • Spindle-torque motor, can be combined with all common control systems
  • pre-loaded hybrid bearings
  • Shear force transducer for force regulation during welding process
  • Rotary union for transmission of clamp- and release-hydraulic

Cytec CYSPEED electrospindle for welding by friction stir
